Voodoo Lab PPEH24 Voltage Doubler Cable, 2.5mm Reverse Polarity, 18inch

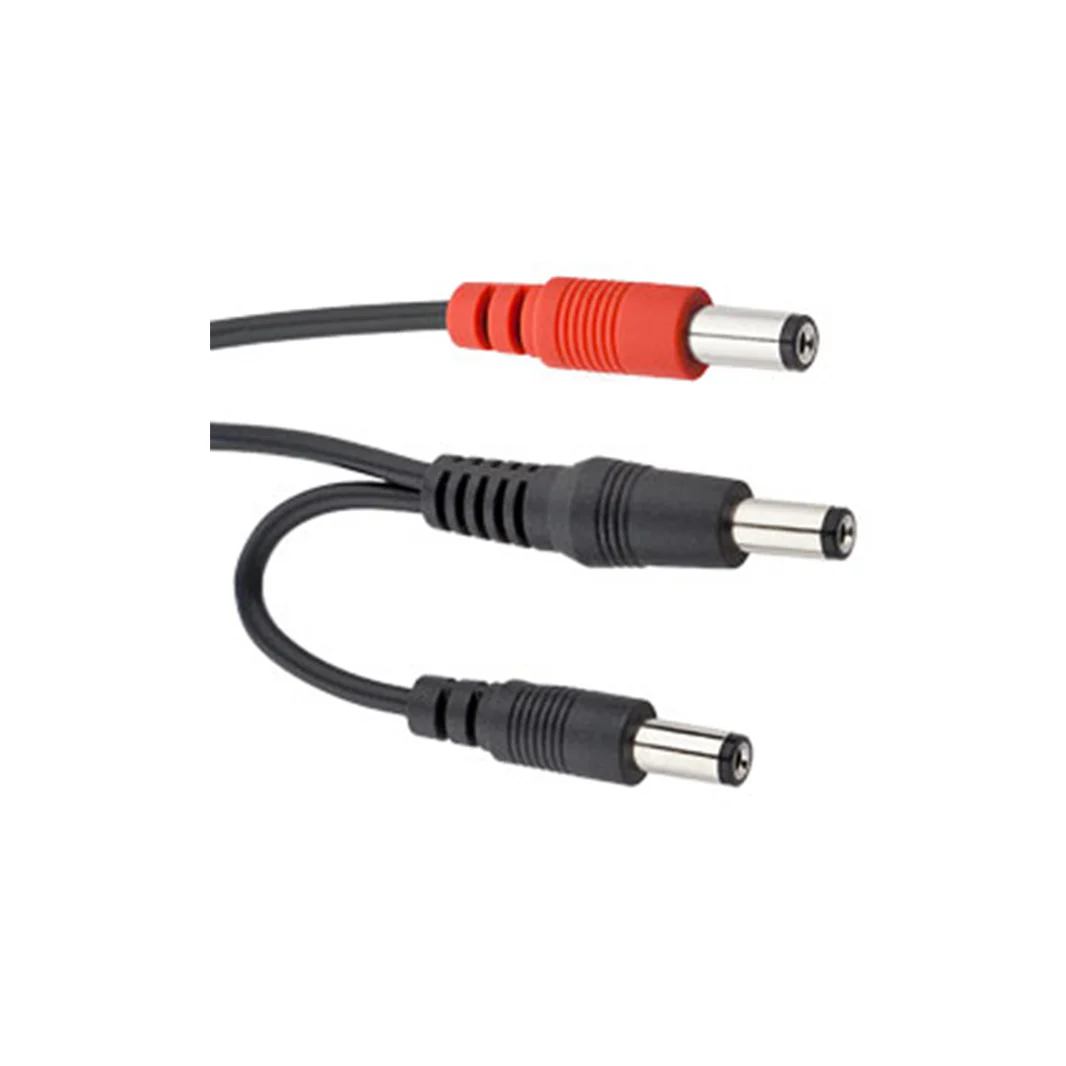

For pedals with higher voltage requirements, the reverse polarity 2.5mm Voltage Doubler Cable (PPEH24) will combine two 9V or 12V Pedal Power outputs to create a single 18V or 24V output. This cable features two BLACK 2.1mm barrel plugs to a single RED 2.5mm plug for use with center-positive polarity pedals. Ideal for Electro-Harmonix Deluxe Memory Man, Stereo Memory Man, Electric Mistress and others that require 24V. Flanger Hoax (18V) also requires this cable.

Features:

• Combines voltage of two Pedal Power isolated outs
• Reverse polarity for center-positive effects
• Custom-designed by Voodoo Lab for optimal performance with Pedal Power
• Nickel-plated barrel plugs secure solid connections between power supply and effects
• 22-gauge copper wire for superior current handling
• Coaxial design allows greater cable flexibility
• Durable PVC insulation ensures long cable life

Specifications:

• Power Supply Connector: Two (2) 2.1mm straight barrels (Black)
• Pedal Connector: One (1) 2.5mm straight barrel plug (Red)
• Polarity: Reverse (center-positive)
• Length: 18” (46cm)
