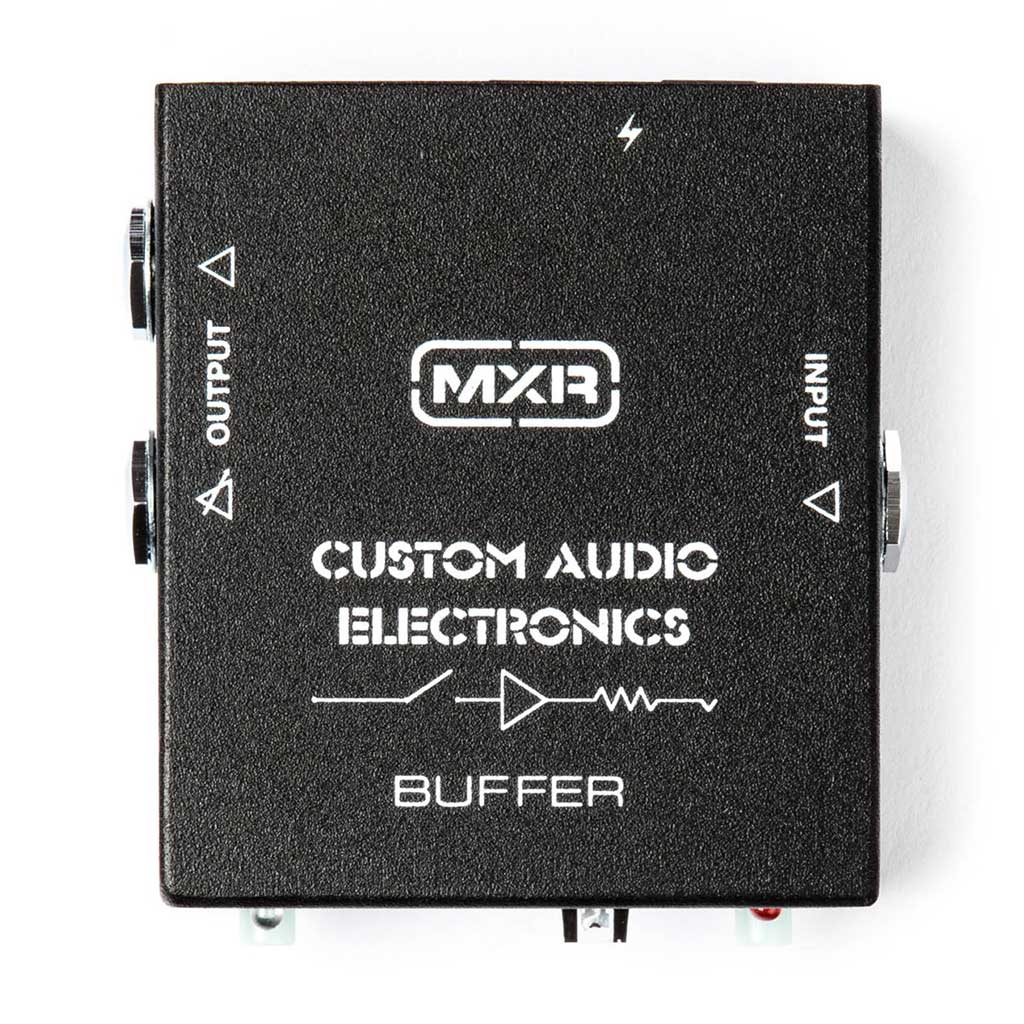

MXR MC406 CAE Buffer Guitar Effects Pedal

When you run your signal from your instrument to your amp though long cables and/or through a large array of effects with varying impedance, there's bound to be some signal degradation. Placing the MC406 Buffer in your signal chain addresses this issue. The MC406 Buffer is truly a mighty utility with a small footprint?an ideal addition to any effects rig or pedalboard!

Features:

• Effects Type: Buffer
• Makes up for signal loss that can occur when combining effects

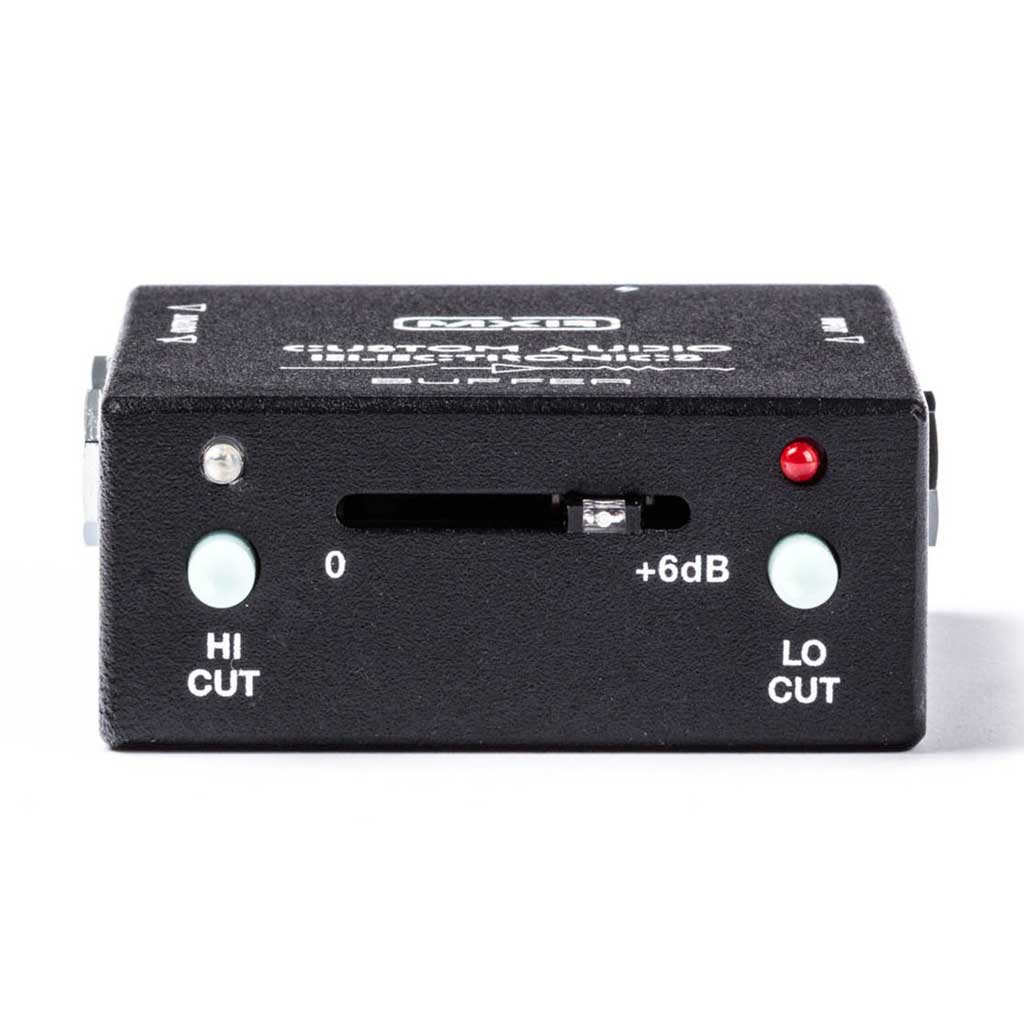

• Fine-tunes signal recovery with Hi & Lo cut switches

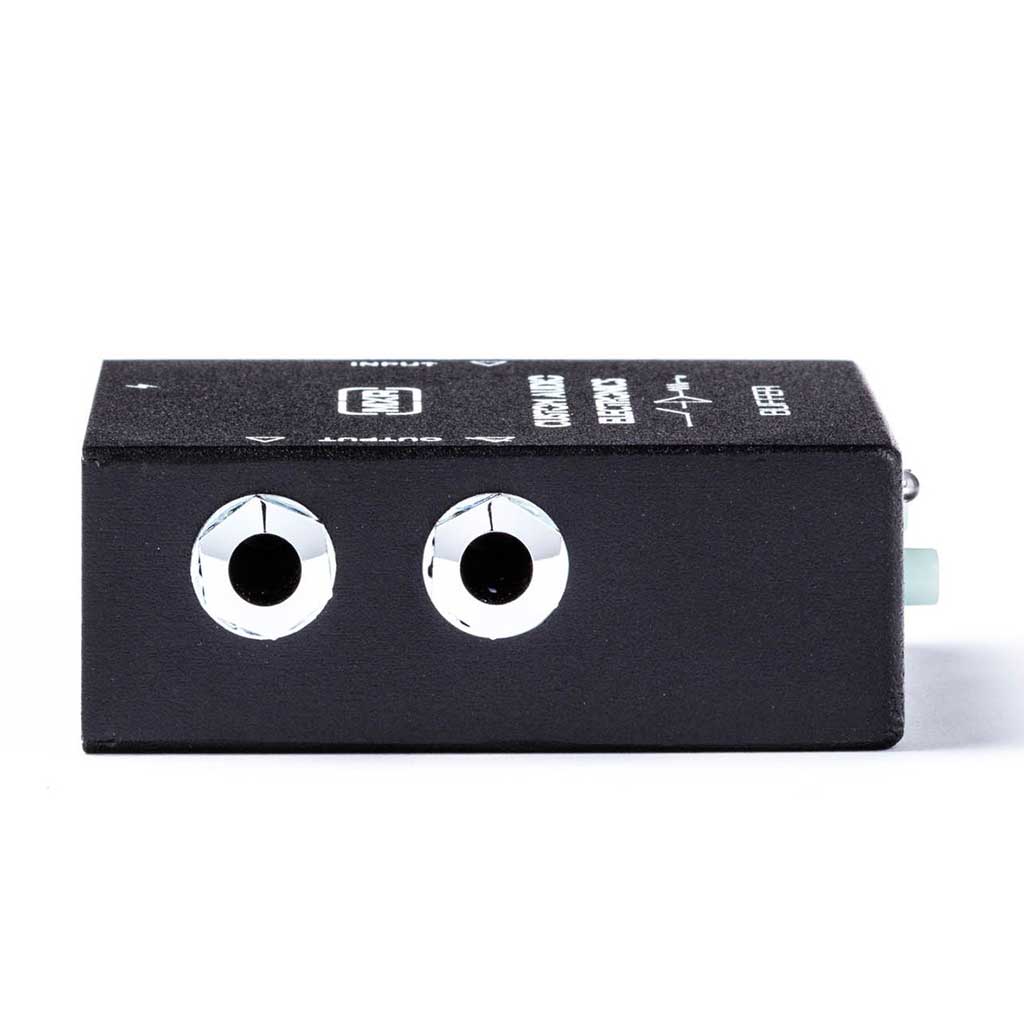

• Extra output for optional separate unbuffered signal chain

Specifications:

• Input Impedance: 1 MΩ
• Output Impedance: <1 kΩ
• Maximum Input Level: 12 dBV
• Maximum Output Level: 19 dBV
• Signal To Noise: >100 dB
• Frequency Response: ±0.1 dB (20 Hz – 20 kHz), -6 dB @ 140 Hz (Lo Cut), -6 dB @ 7 kHz (Hi Cut)
• Bypass: True Hardwire Relay
• Current Draw: 43 mA
• Power Supply: 9 Volts DC
