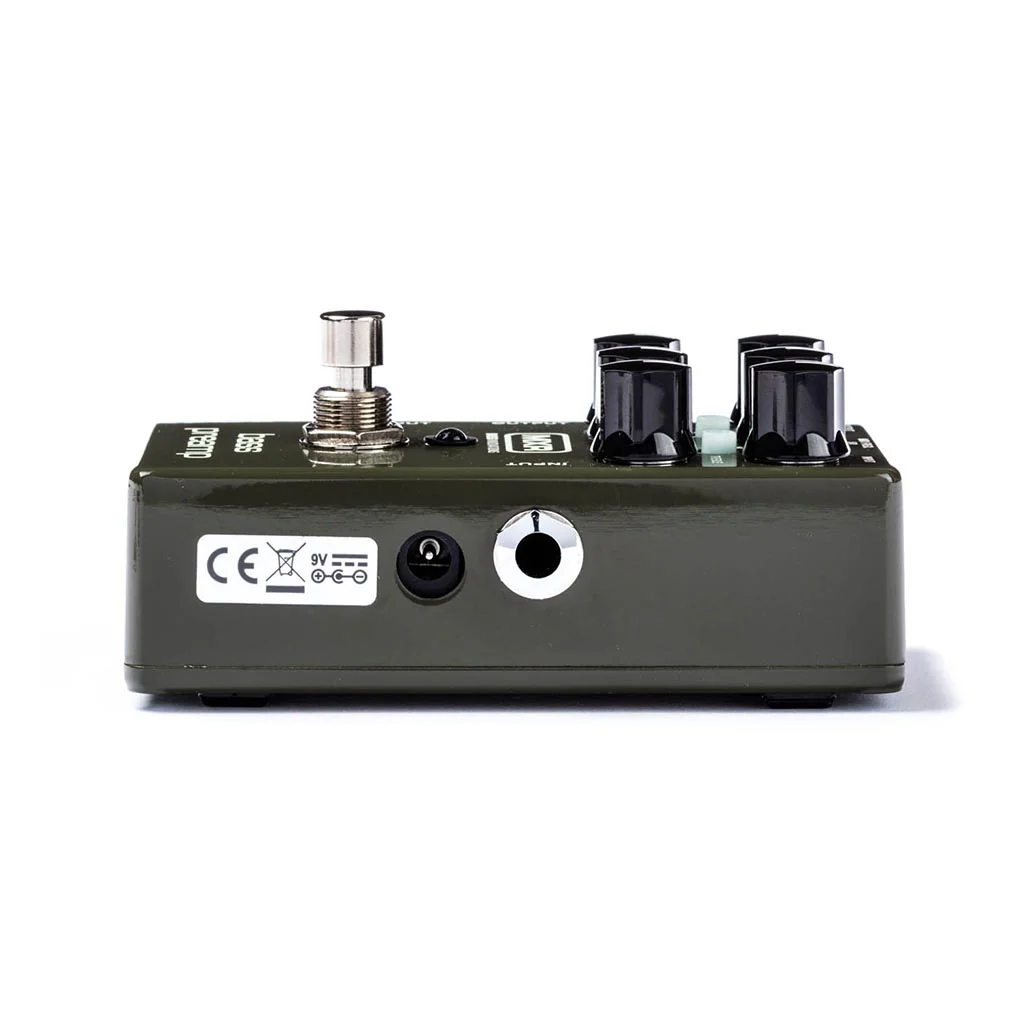

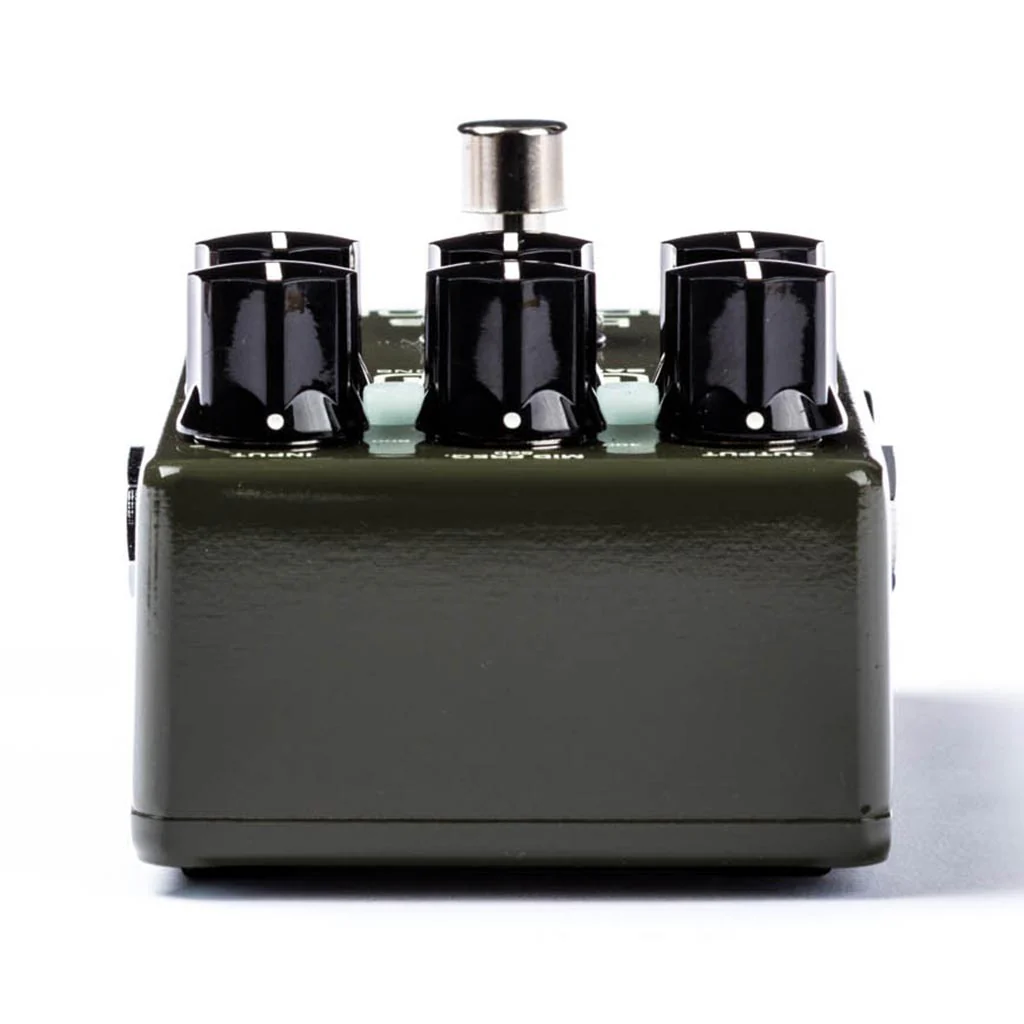

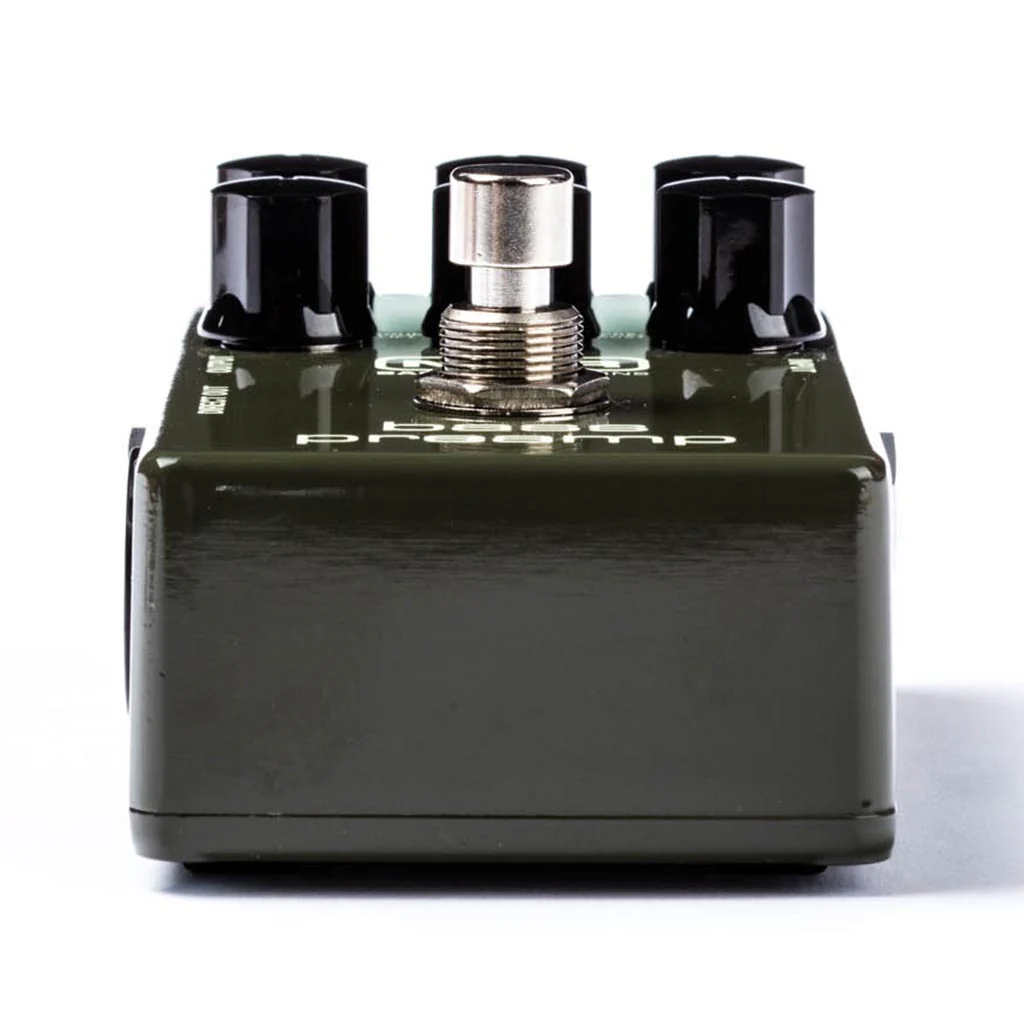

MXR M81 Bass Preamp Guitar Effects Pedal

The MXR Bass Preamp combines a pristine bass preamp with a studio-quality Direct Out in a Phase 90-sized box, providing clear tone without hogging precious pedalboard space. Use it to add a new voice to an old passive bass, sweeten up any amp, or put some special sauce on a particular song. Dial it in just the way you want it and send it straight to the house 'pre or post-EQ' with the built-in Direct Out.

Features:

• Separate INPUT & OUTPUT level controls
• 3-band EQ section with sweepable midrange
• Studio-quality Direct Out

Specifications:

• Input Impedance: 2.2 MΩ
• 1/4” Output Impedance: 300 Ω, 40 Hz
• Balanced Output Impedance: 120 Ω, 40 Hz
• Maximum 1/4” Output Level: +13 dBV
• Maximum Balanced Output Level: -2 dBV
• Noise Floor: -98 dBV
• THD: 0.03%, 1 kHz
• EQ Controls: ±16 dB, 40 Hz (Bass), ±17 dB, 250 Hz to 1 kHz (Mid),
• ±18 dB, 4 kHz (Treble)
• Input Control: Pre EQ, ±10 dB
• Output Control: Post EQ, +20 dB
• Bypass: True Hardwire Buffer
• Current Draw: 8.5 mA
• Phantom Power Current Draw: 5 mA
• Power Supply: 9 Volts DC
