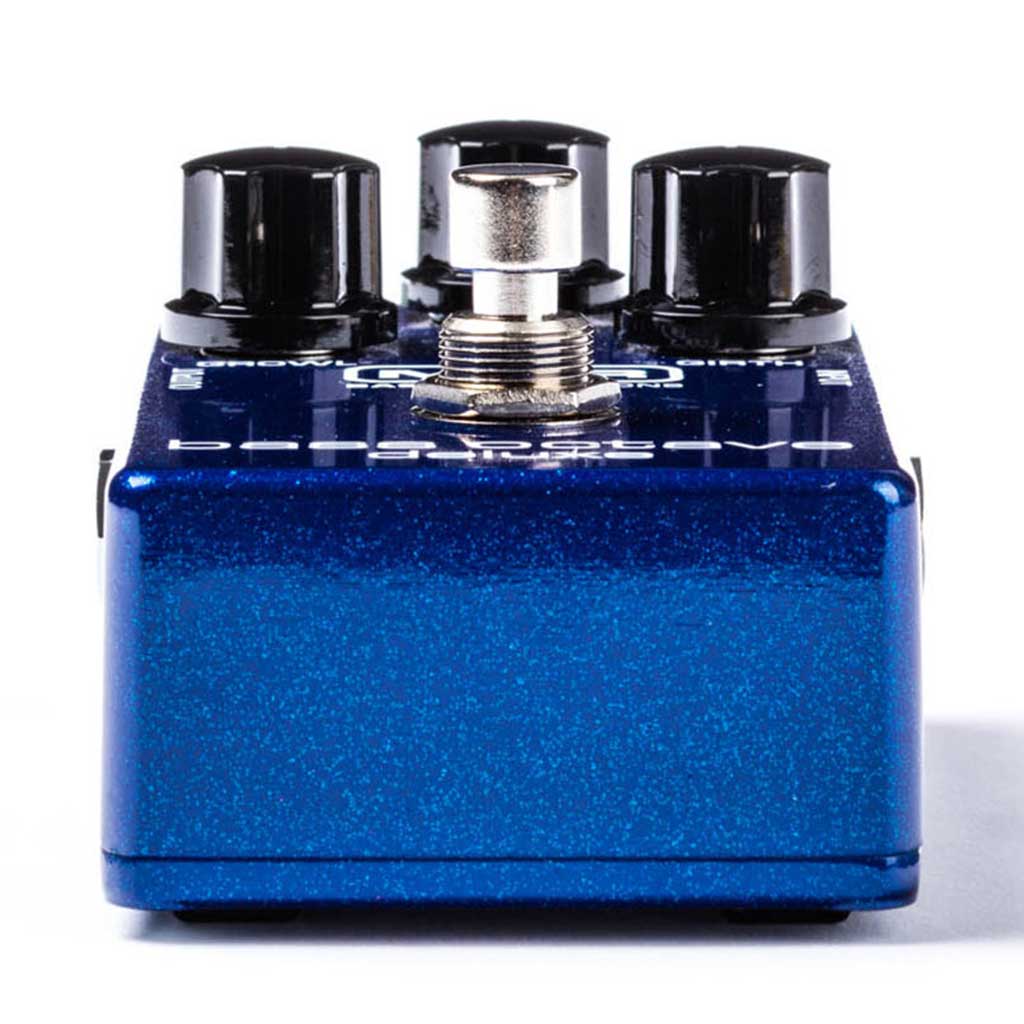

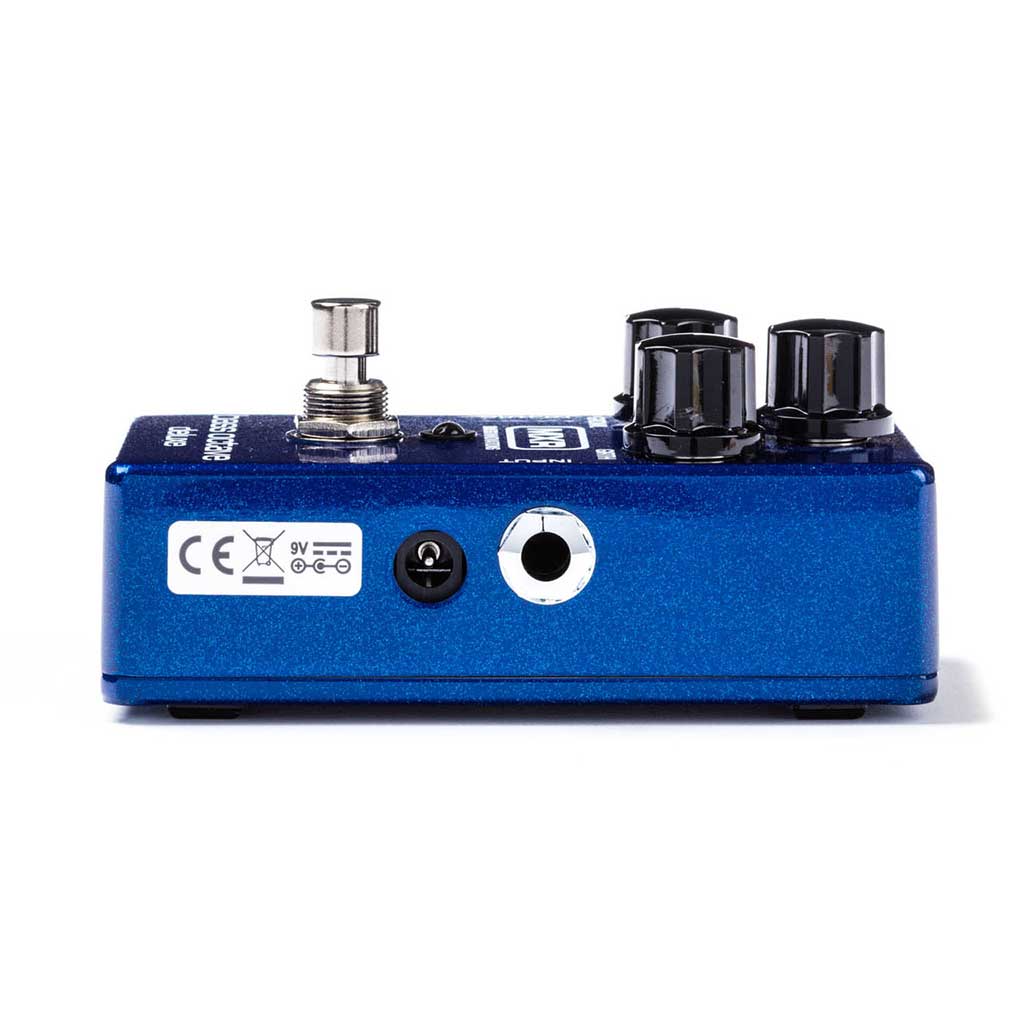

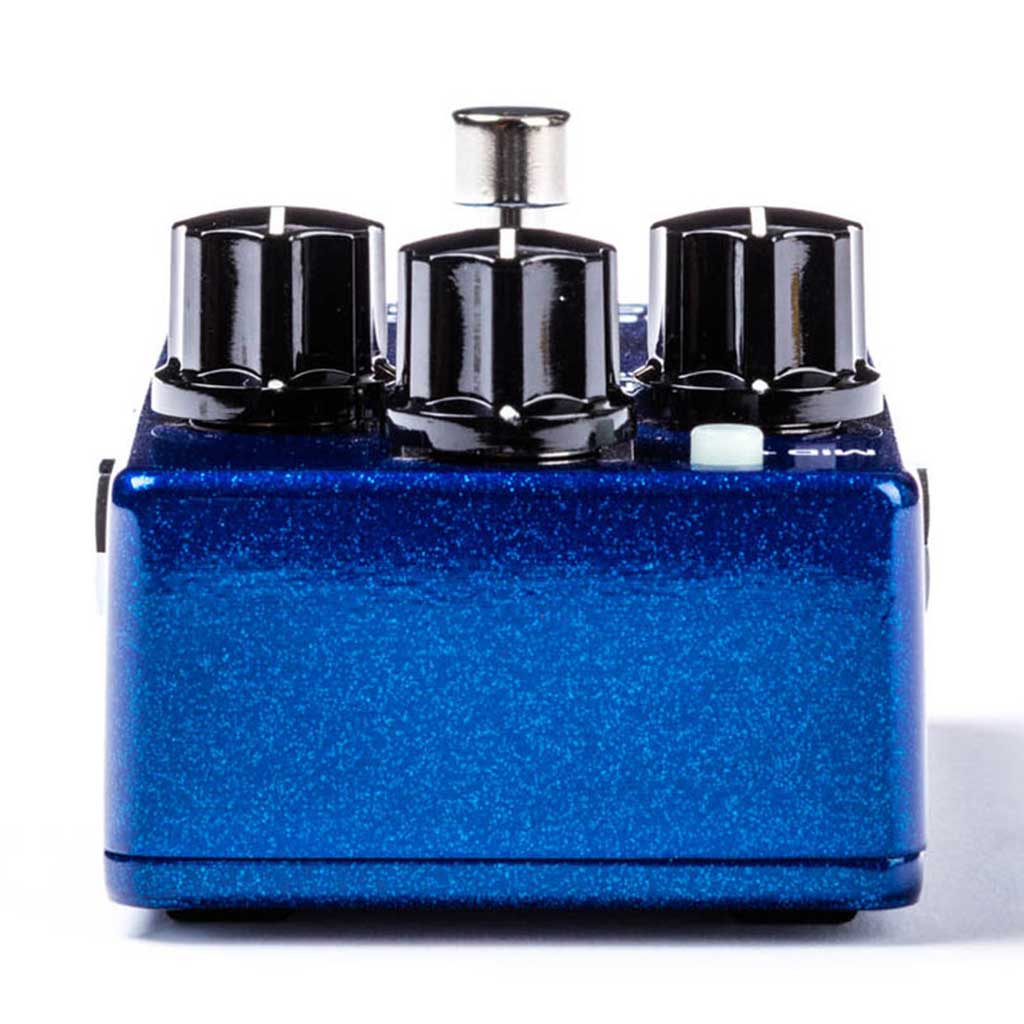

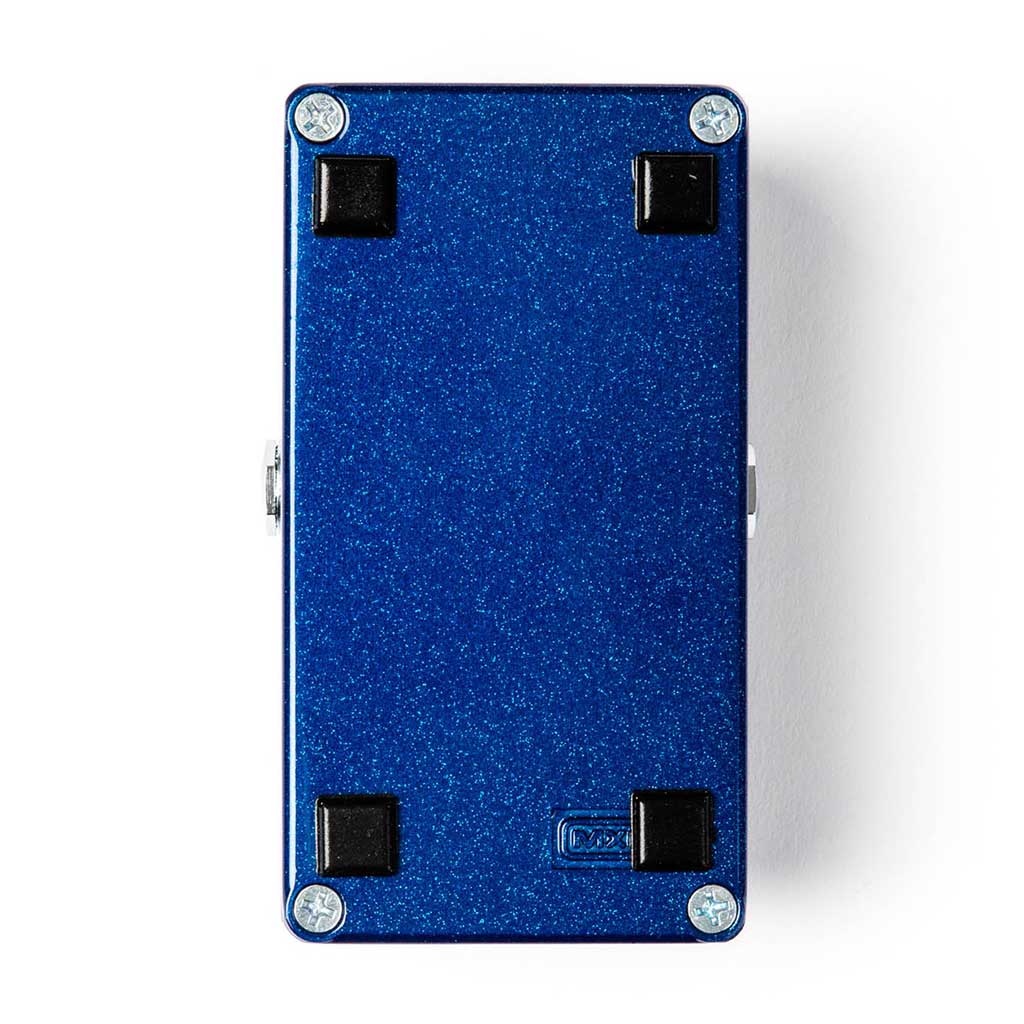

MXR M288 Bass Octave Deluxe Guitar Effects Pedal

The M288 Bass Octave Deluxe is a dual-voice octave pedal that offers analog tone, true bypass, and a variety of tonal options. MXR's 18 volt Constant Headroom Technology provides high headroom and superior tracking.

Features:

• Effects Type: Octave
• Two independent analog octave voices
• Mid+ switch boosts selectable midrange
• Constant headroom Technology (CHT)

Specifications:

• Input Impedance: 1 MΩ
• Output Impedance: < 600 Ω
• Noise Floor: 85 dB
• Octave Frequency Bandpass: -3 dB, 8 Hz to 46 Hz
• Control Range: -∞ to +2.5 dB (Dry), -∞ to +1 dB (Girth), -∞ to +6 dB (Growl)
• MID+ Switch: +4 dB to +14 dB (Gain), 400 Hz or 850 Hz (Frequency)
• Bypass: True Hardwire
• Current Draw: 14 mA
• Power Supply: 9 Volts DC
